Feather M0 RFM96 LoRa Radio - 433MHz Adafruit 3179

Feather M0 RFM96 LoRa Radio - 433MHz Adafruit 3179

• Feather is the new development board from Adafruit, and like its namesake it is thin, light, and lets you fly! We designed Feather to be a new standard for portable microcontroller cores.

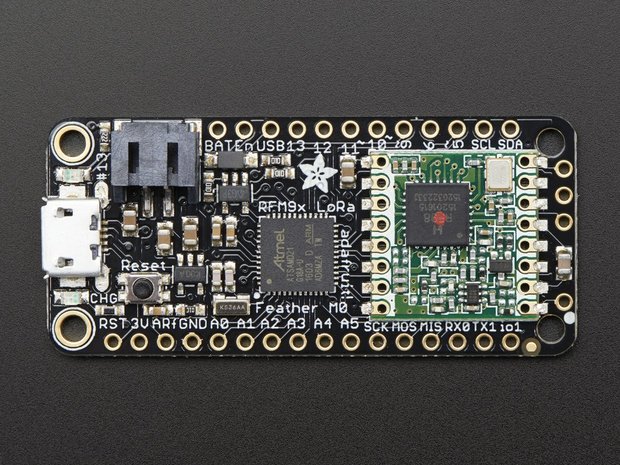

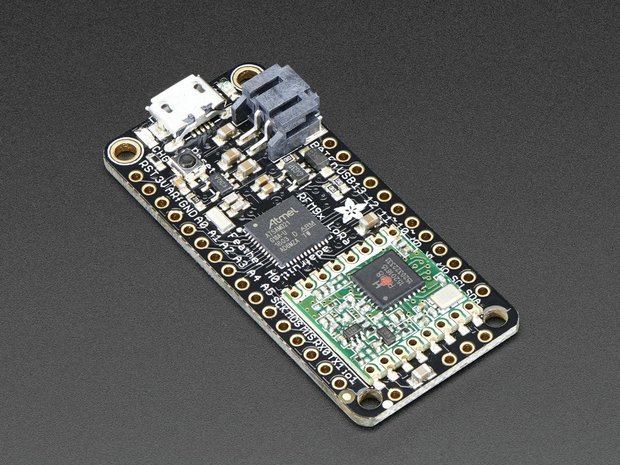

  This is the Adafruit Feather M0 RFM96 LoRa Radio (433 MHz) - our take on an microcontroller with a "Long Range (LoRa)" packet radio transceiver with built in USB and battery charging. Its an Adafruit Feather M0 with a 433MHz radio module cooked in! Great for making wireless networks that are more flexible than Bluetooth LE and without the high power requirements of WiFi. We have other boards in the Feather family, check'em out here.

  This is the 433 MHz radio version. We also sell a 898/915 MHz version of the same radio chipset!

  At the Feather M0's heart is an ATSAMD21G18 ARM Cortex M0 processor, clocked at 48 MHz and at 3.3V logic, the same one used in the new Arduino Zero. This chip has a whopping 256K of FLASH (8x more than the Atmega328 or 32u4) and 32K of RAM (16x as much)! This chip comes with built in USB so it has USB-to-Serial program & debug capability built in with no need for an FTDI-like chip.

  To make it easy to use for portable projects, we added a connector for any of our 3.7V Lithium polymer batteries and built in battery charging. You don't need a battery, it will run just fine straight from the micro USB connector. But, if you do have a battery, you can take it on the go, then plug in the USB to recharge. The Feather will automatically switch over to USB power when its available. We also tied the battery thru a divider to an analog pin, so you can measure and monitor the battery voltage to detect when you need a recharge.

  Here's some handy specs! Like all Feather M0's you get:

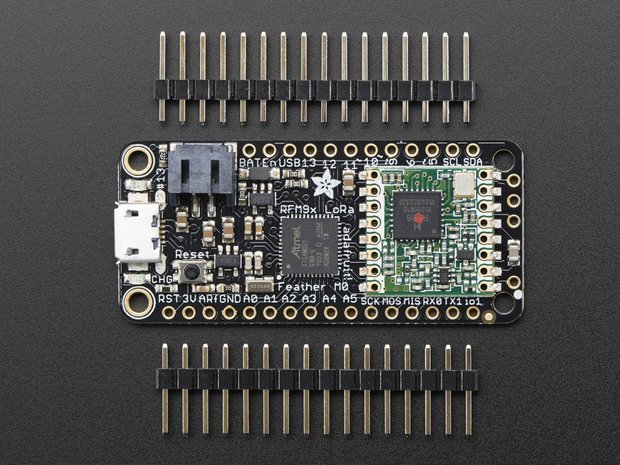

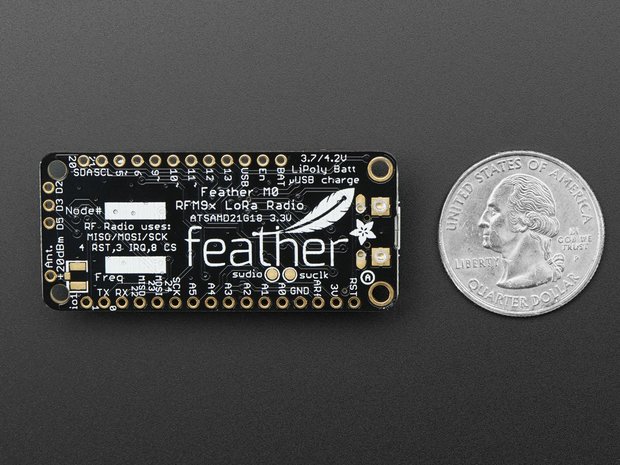

• Measures 2.0" x 0.9" x 0.3" (51mm x 23mm x 8mm) without headers soldered in
• Light as a (large?) feather - 5.8 grams

• This Feather M0 LoRa Radio uses the extra space left over to add an RFM9x LoRa 868/915 MHz radio module. These radios are not good for transmitting audio or video, but they do work quite well for small data packet transmission when you need more range than 2.4 GHz (BT, BLE, WiFi, ZigBee).

• SX127x LoRa® based module with SPI interface
• Packet radio with ready-to-go Arduino libraries
• Uses the license-free ISM bands (ITU "Europe" @ 433MHz and ITU "Americas" @ 900MHz)
• +5 to +20 dBm up to 100 mW Power Output Capability (power output selectable in software)
• ~300uA during full sleep, ~120mA peak during +20dBm transmit, ~40mA during active radio listening.

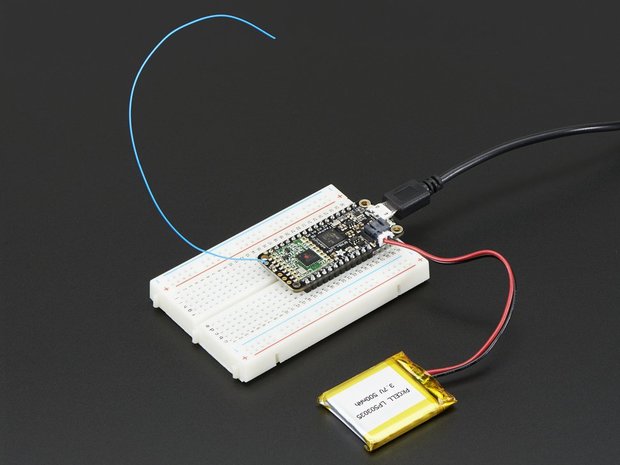

• Simple wire antenna or spot for uFL connector
