GP-2106 Breakout Sparkfun 11073

GP-2106 Breakout  Sparkfun 11073

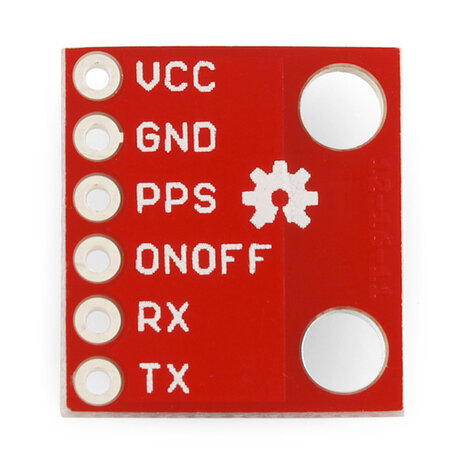

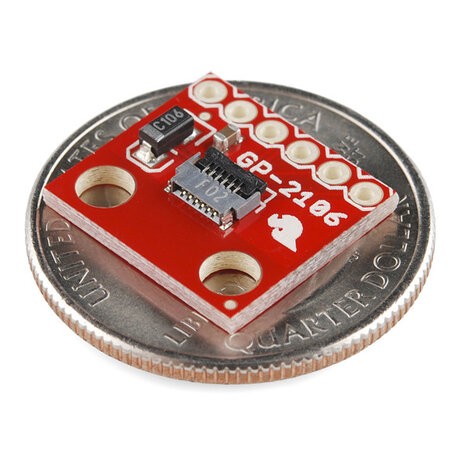

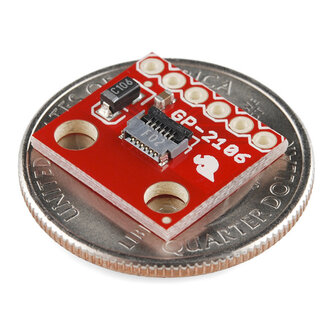

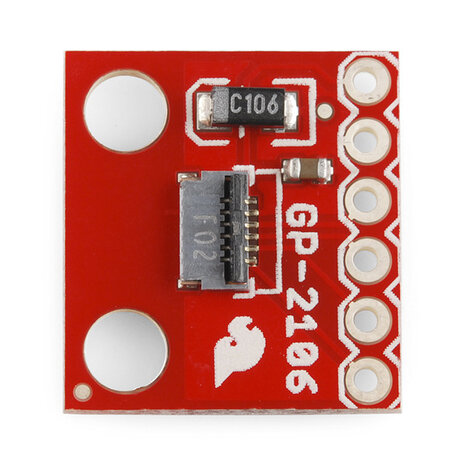

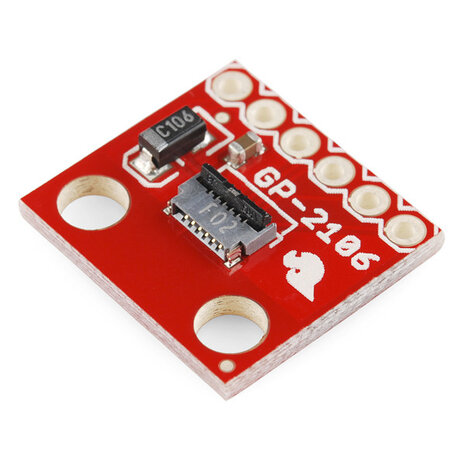

Description: This breakout board gives you access to the little tiny pins on the ribbon connector for the, also tiny, GP-2106 GPS module. All six pins are broken out to standard 0.1" headers. Keep in mind the GP-2106 runs on 1.8V and uses 1.8V logic levels. This board has undergone a minor layout revision to get the capacitor footprint out from under the connector.

Note: This board breaks out the connector only and does not include the GP-2106 module itself nor does it include the connecting ribbon cable. Both can be found in the related items below.

Documents:

• Schematic
• Eagle Files
• Datasheet (GP-2106)
• GitHub
